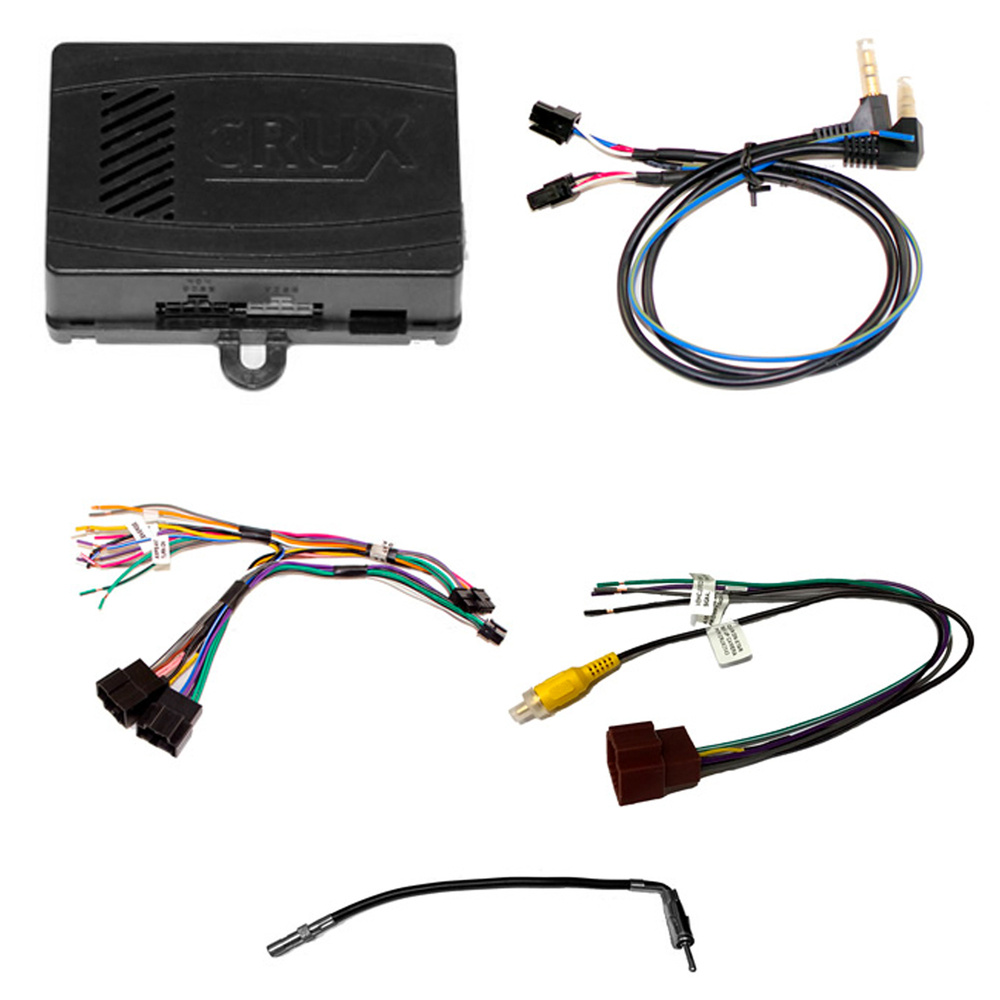

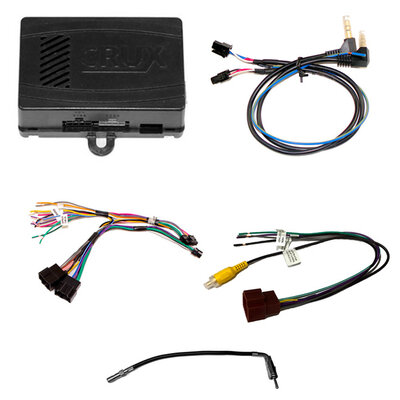

SWRGM-49A CRUX 29BIT 12-14 INTERFACE W/SWC

SWRGM-49A
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Trucks & SUVs 2012-2014

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0206201 of 3
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 29 Bit trucks and SUVs while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
- Retains factory back-up camera.
- EIA color coded wiring for easy installation.

CHEVROLET
2012-2013 Avalanche
2012-2014 Silverado 1500-3500 Pickup
2012-2014 Suburban
2012-2014 Tahoe
GMC
2012-2013 Sierra 1500-3500 Pickup
2012-2014 Yukon
NOTES:
1. NOT compatible with Express and Savana vans that are powered by a diesel engine.
2. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
3. DOES NOT retain ONSTAR.
