SWRGM-49R 19-23 GM IOR INTERFACE CRUX

Brand: CRUX

Add to favorites

Article code	AXDIS-GMLN31
EAN	850058234410

Share this product

Information

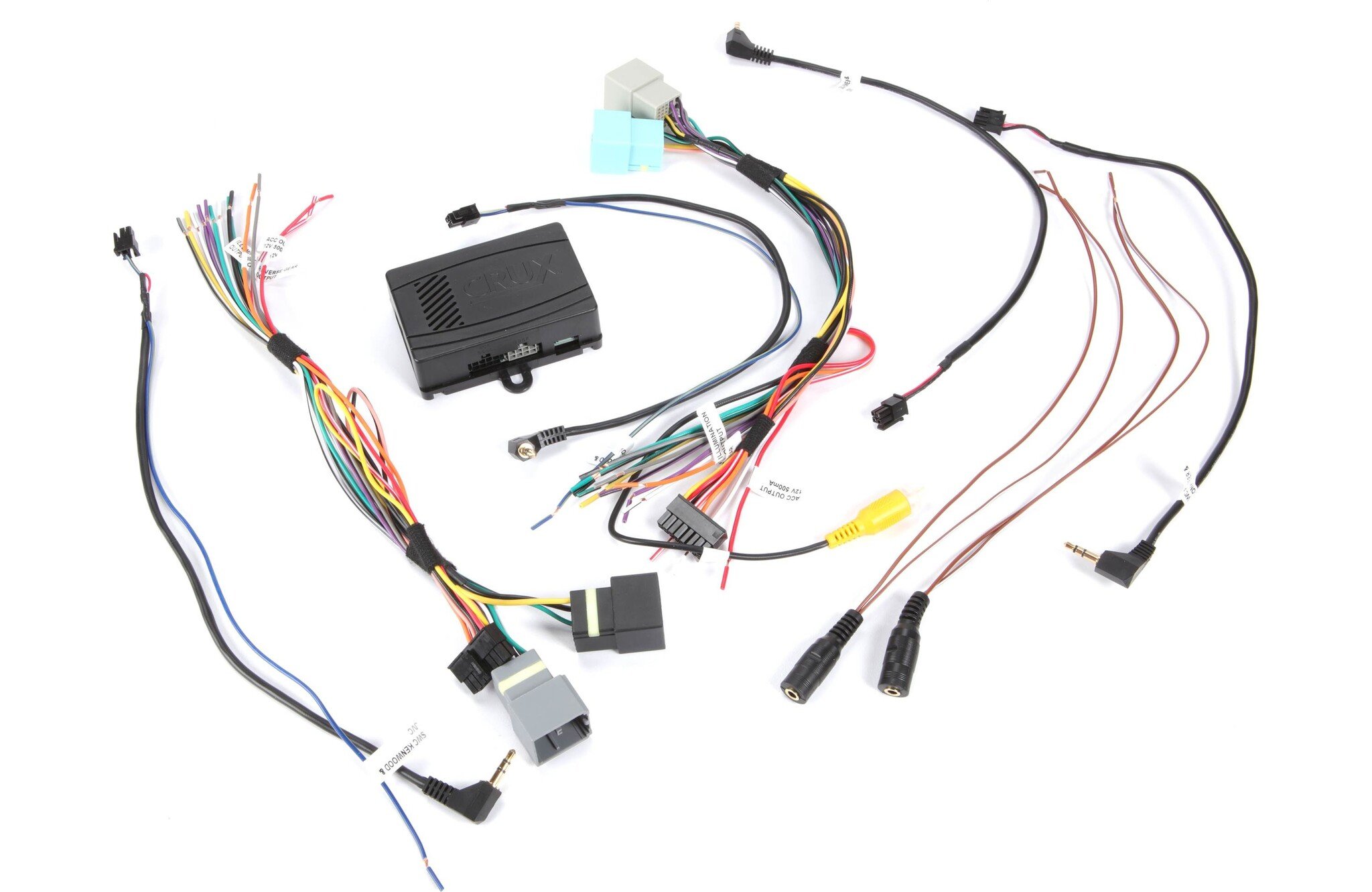

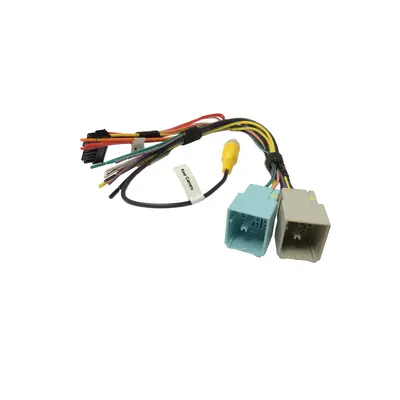

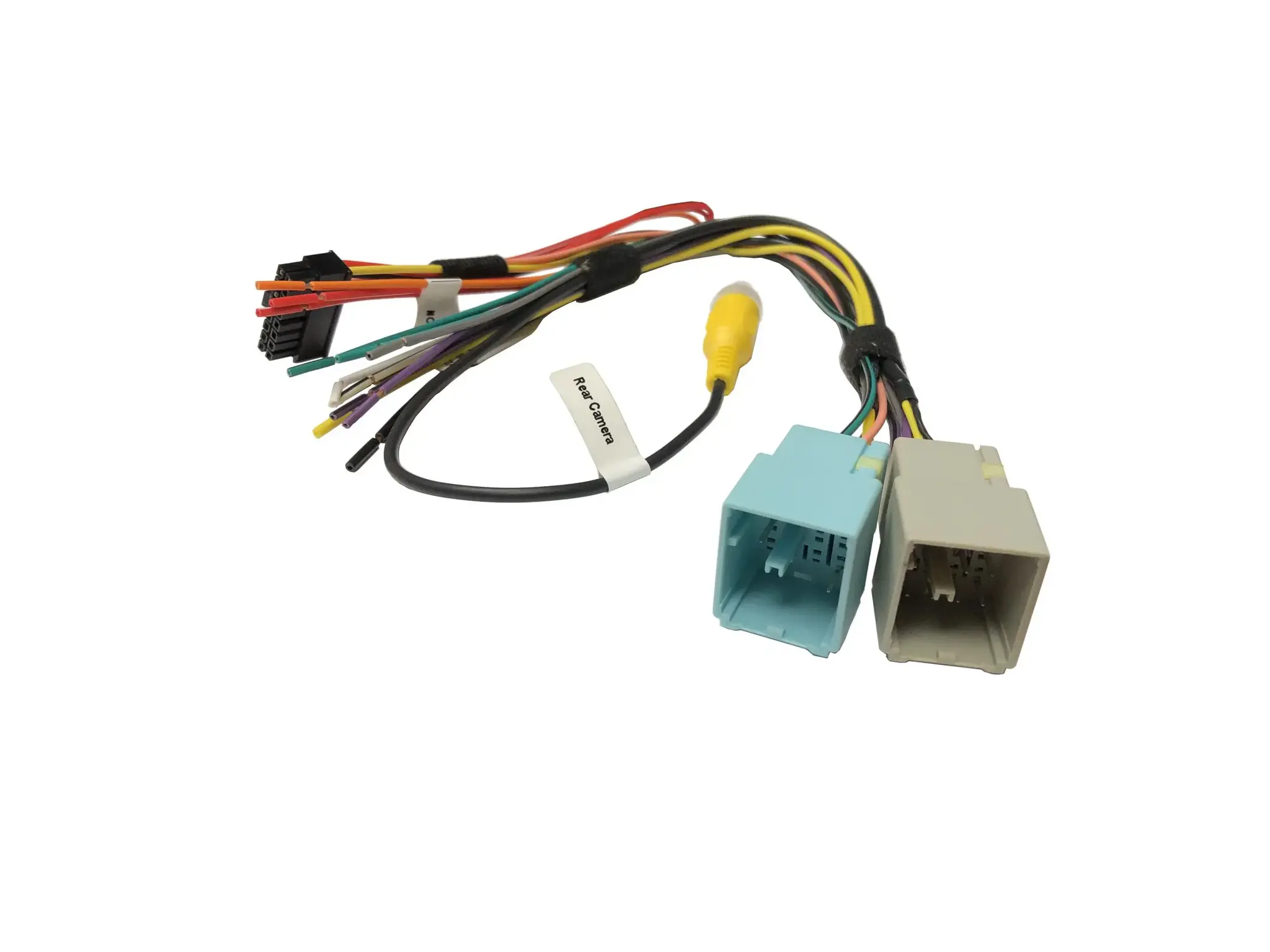

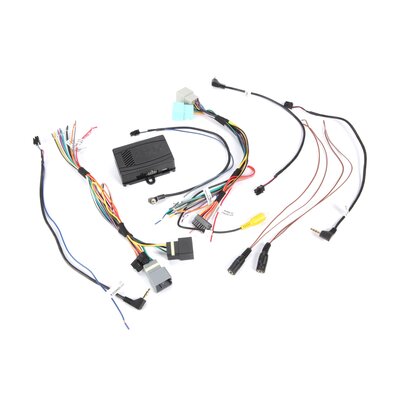

SWRGM-49R | Radio Replacement Interface with Steering Wheel Control Retention for GM IOR Vehicles 2019 - Up

– Retains chime functions.
– Pre-programmed to retain factory Steering Wheel Controls
– RAP (Retained Accessory Power).
– Provides illumination, parking brake, reverse, and speed sense outputs.
– Made for non-amplified vehicles or vehicles that will have their amps bypassed.
– Retains factory back-up camera. (Excluding Camaro (IOR) 2019-Up)

Note:- Does not retain Bose amplifier.
– Does not retain OnStar

CHEVROLET
2019-Up Camaro*
2019-Up Colorado
2019 Cruze
2019-Up Equinox*
2019-Up Malibu*
2019-Up Silverado*
2019-Up Sonic
2019-Up Spark

GMC
2019-Up Canyon
2019-Up Sierra 1500*
2019-Up Terrain*

Note:

– Does not retain Bose amplifier.
– Does not retain OnStar

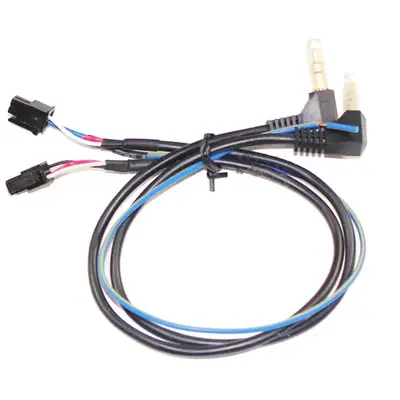

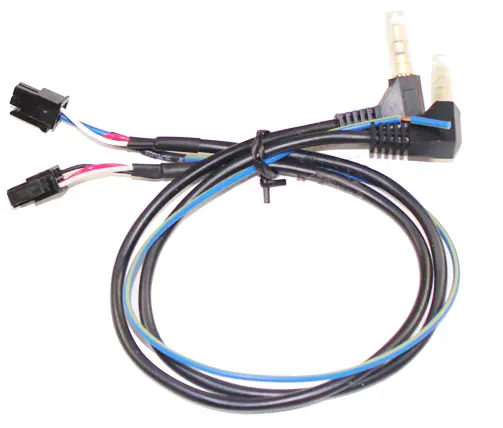

*USE GM49R-EXT, 5 foot Extension Harness is used with GM IOR in cases where the Radio Control Module is located at front passenger side (by the door hinge). Sold separately

Compatible with the following radio code: IOR
NOTE: The radio code can be found in the Glove Box.
NOTE: Newer model GM vehicles are now using a QR code label. If the Service Parts Identification Label is not located in
the Glove Box, reference the Vehicle Certification Label on the driver’s door jam opening for the QR code
