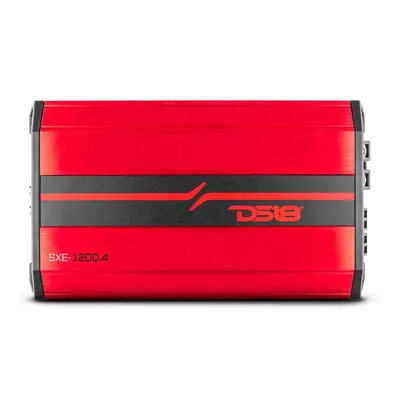

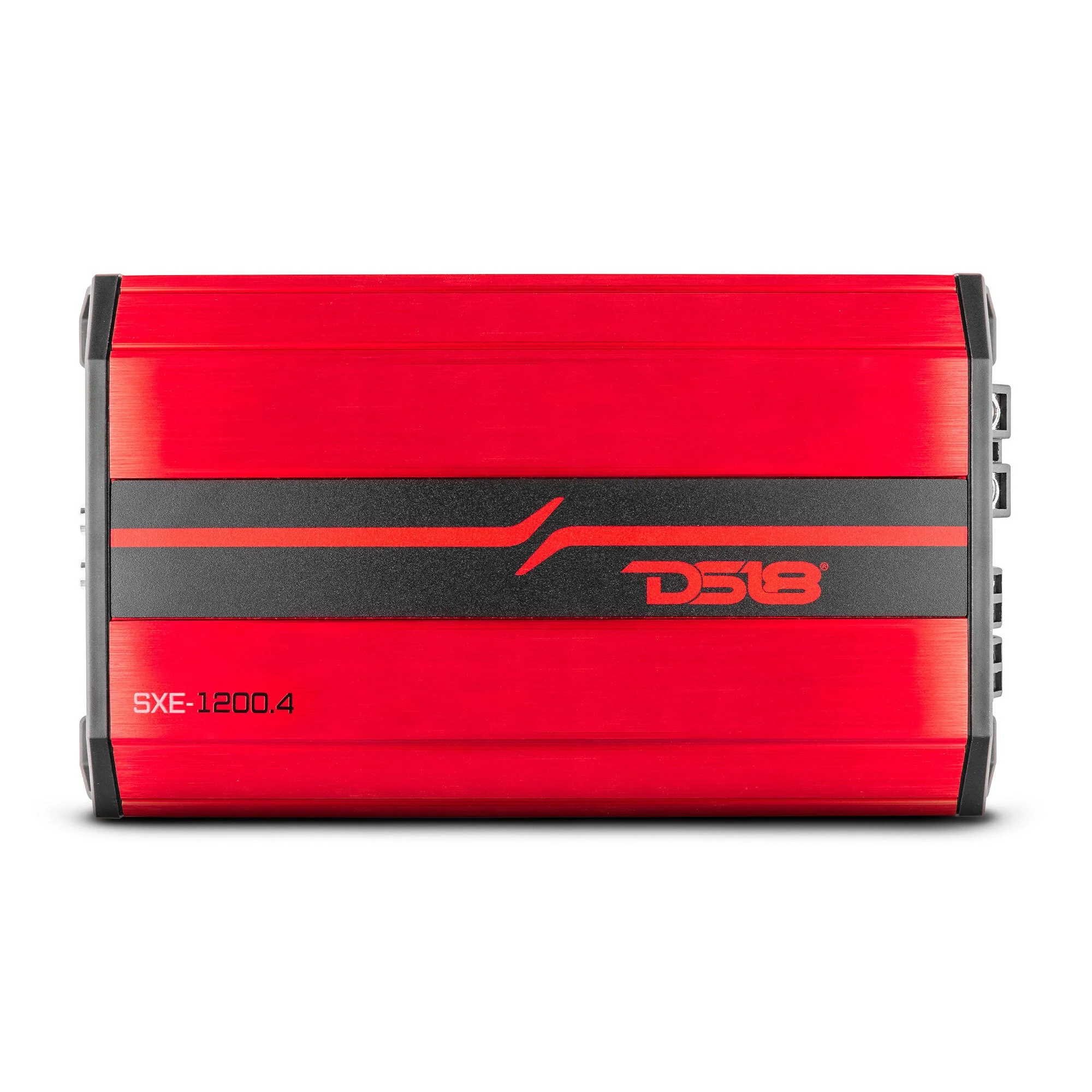

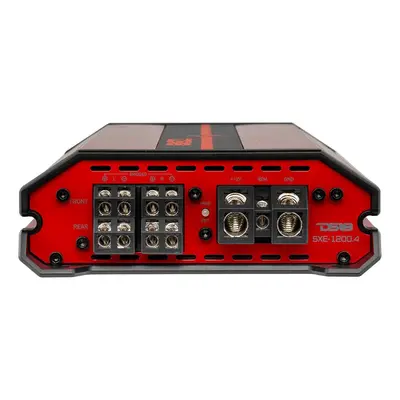

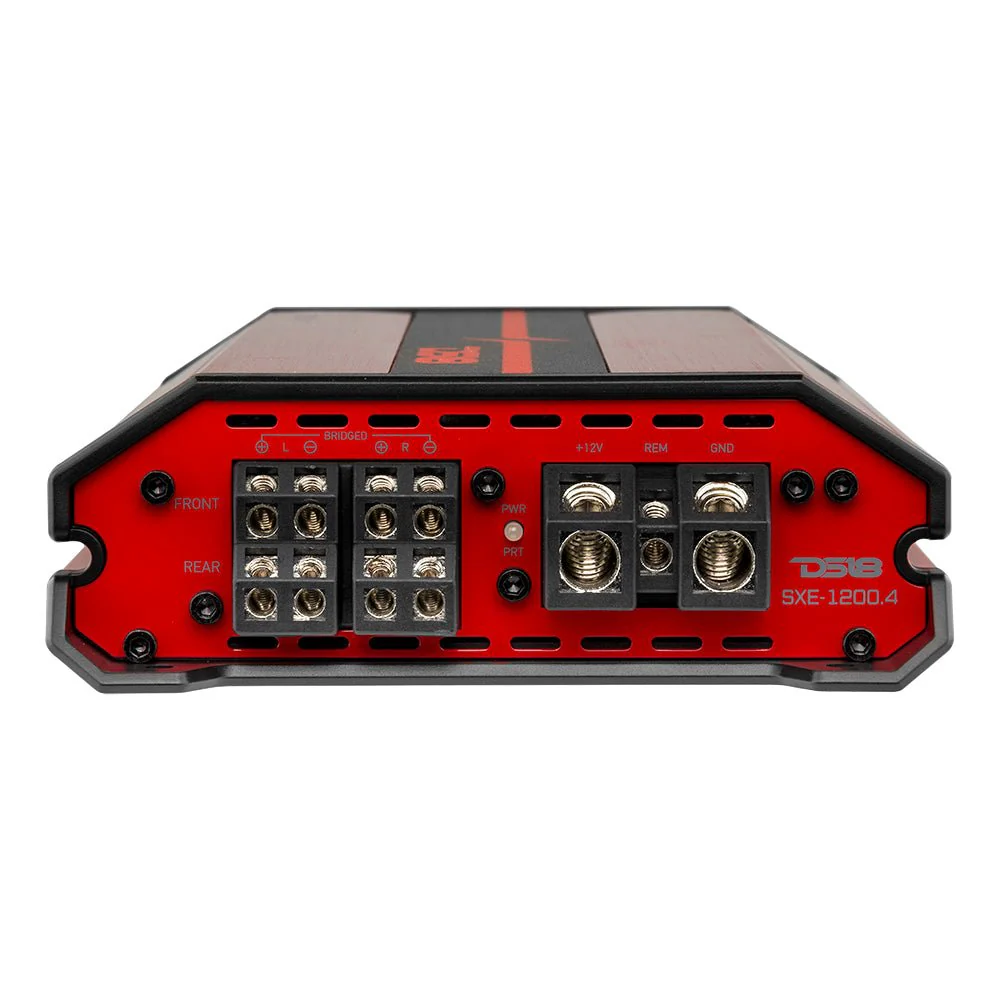

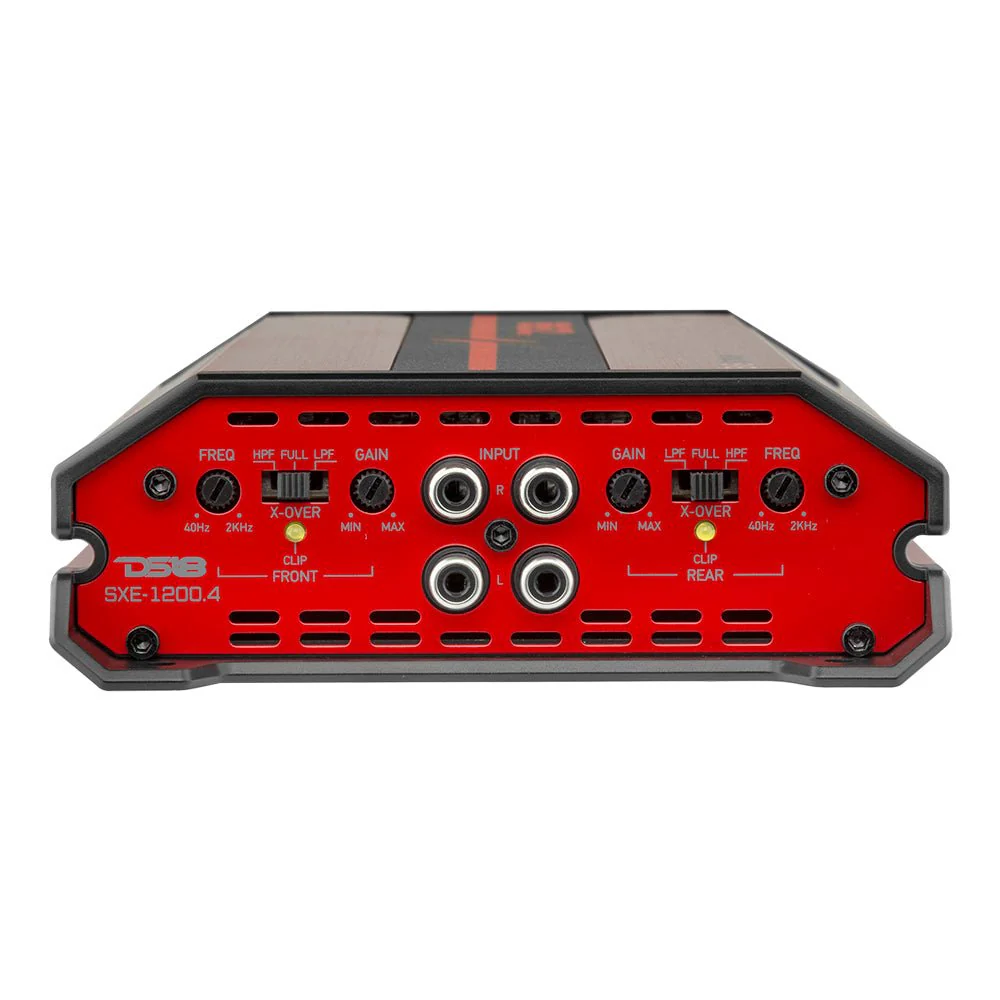

DS18 SXE-1200.4/RD DS18 400W 4CH AMP

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code SXE1200
EAN 810097261228
Information

SXE Class A/B 4-Channel Full-Range Car Amplifier 4 x 60 RMS @4 Ohm 1200 Watts

Key Features

  • Full Range Amplifier
  • 4 Channel
  • Class A/B
  • 2 ~ 4 Ohm Stable
  • 4 x 60 Watts @ 4 Ohm
  • Compact Design

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



SPECS

SKU
SXE-1200.4
Total Watts (Peak)
1200W
RMS Power @ 4 Ohm
4 x 60W
RMS Power @ 2 Ohm
4 x 100W
RMS Power @ 4 Ohm Bridge
2 x 200W



AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4 Ohm
64%
Damping Factor
170
Input Impedance
20kΩ
Channel Separation
45dB
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
40HZ-2KHZ



FEATURES

Amplifier Class
Analog (AB)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
2 x 25A (50A)
Cooling Fan
Yes
Thermal Protection
Yes (80°C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color
Red / Black Brushed Aluminum



MEASUREMENTS

Overall Length
9.81” / 249.3mm
Overall Wide
5.51” / 140mm
Overall Height
1.88” / 48mm
Heatsink Length
8.34” / 212mm
Gross Single Unit Weight
1.76KG
