General

Speaker Type / Size

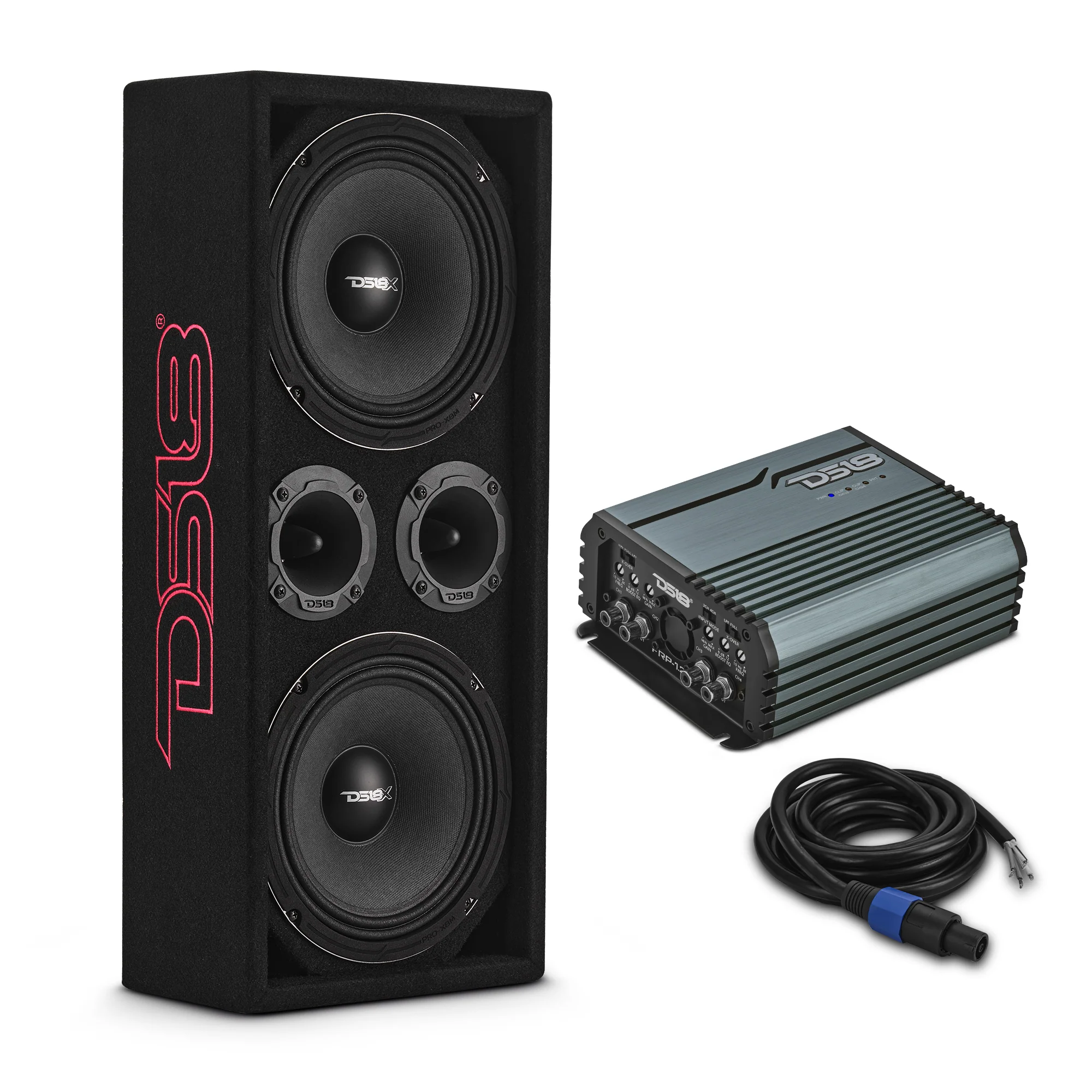

Dual 8" Mid-Range (PRO-X8M) + Dual 3.78" Tweeter (PRO-TWX2)
Total Impedance
4 Ohms
Total RMS Power Handling
275W
Total MAX Power Handling
550W
Sensitivity (1W/1M)
97 dB
Frequency Response
80Hz-20kHz
Recommended High-Pass Crossover
120 Hz

Enclosure Specifications

Internal Volume
11.6L / 0.41ft3
Port Tune (Fb)
120 Hz
Load Configuration
Parallel
Enclosure Type
Side Ported
Enclosure Material
1/2" (15mm) MDF
Finish Material
Black Carpet
-3dB Dropping Point (F3)
80 Hz

Measurements

Height
22.25" (565mm)
Width
9.5" (241mm)
Depth
5.25" (133mm)

Amplifier (FRP-1.2K4)
Power

RMS Power @ 4 Ohms
4 x 120W
RMS Power @ 2 Ohms
4 x 200W
RMS Power @ 1 Ohm
4 x 300W
RMS Power @ 4 Ohms Bridge
2 x 350W
RMS Power @ 2 Ohms Bridge
2 x 500W

Amplifier (FRP-1.2K4)
Audio

Frequency Response
10Hz-20kHz
Signal to Noise Ratio
90dB
Efficiency @ 4 Ohms
97%
Damping Factor
90
Input Impedance
10k
Total Harmonic Distortion (THD)
0.5%
Low-Level Input Range
400mV-6V
Selectable X-Over
Yes, HPF / FULL / LPF
X-Over Filter Range
10Hz-2kHz
Bass Boost Frequency
50Hz
Bass Boost Range
0-12dB
Channel Separation
50dB

Speaker Wires

Type
Speakon (Male)
Total Length
12ft (3.6m)
Conductor Material
Copper (OFC)
Number of Conductors
4
Gauge
14 AWG
Nominal Outside Diameter
8mm
Cable Construction Type
Stranded / Multi-Twist
Shield Material / Color
PVC / Black
