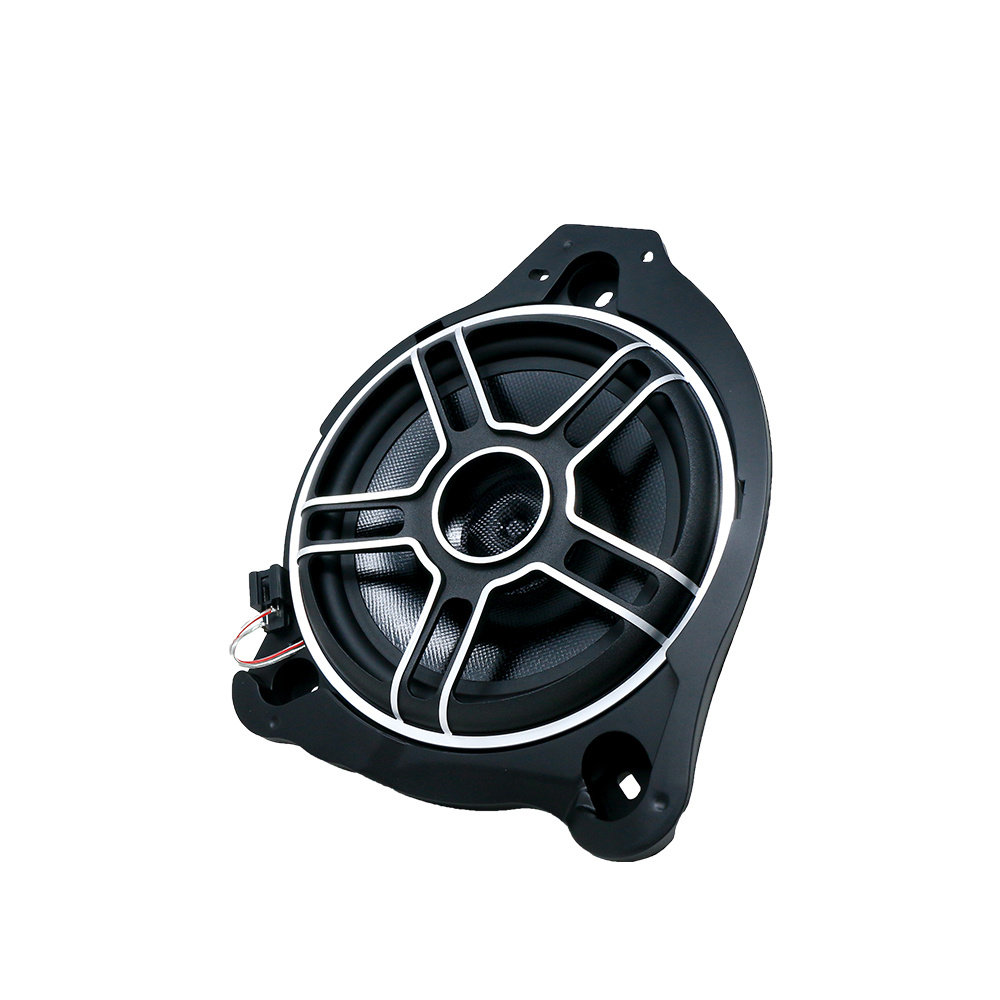

VSPMBZCSS DIAMOND MERCEDES DIRECT FIT

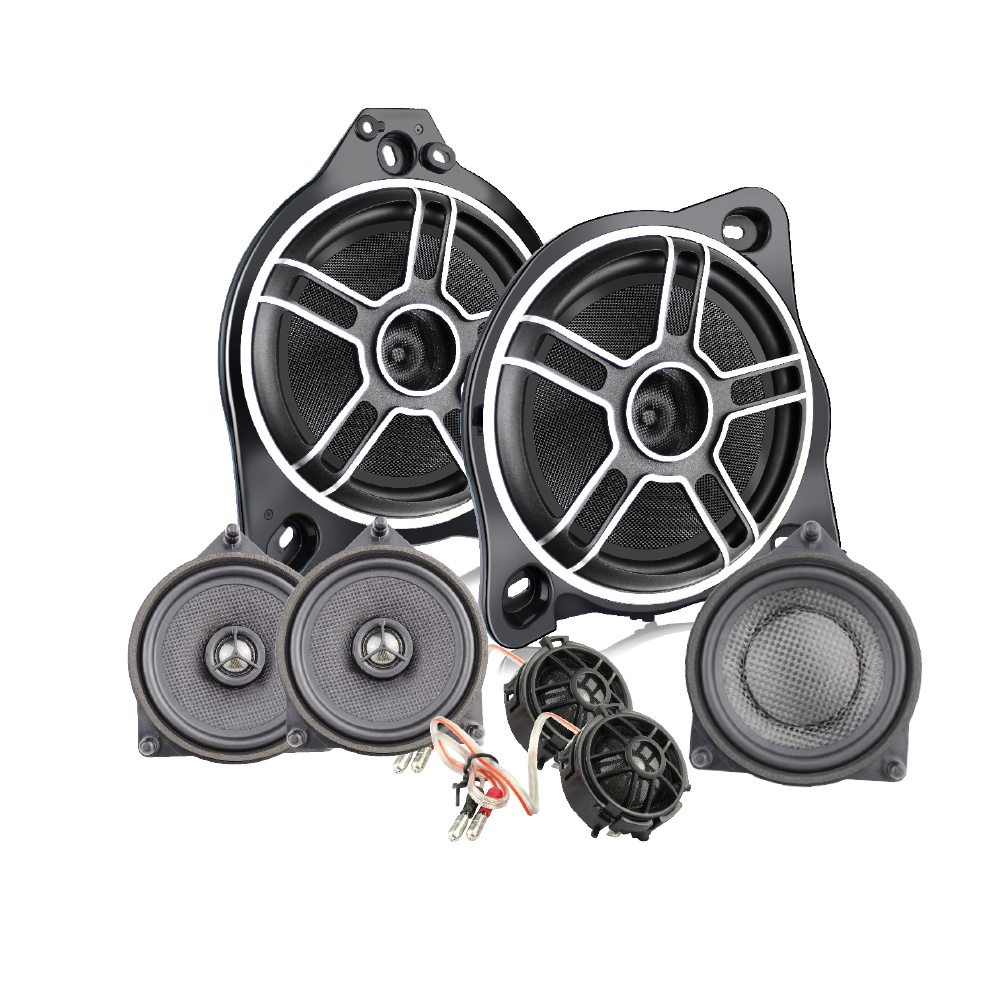

VSPMBZCSS – High-Performance Factory Fit OEM Replacement Complete System for 2000-2020 Mercedes Benz

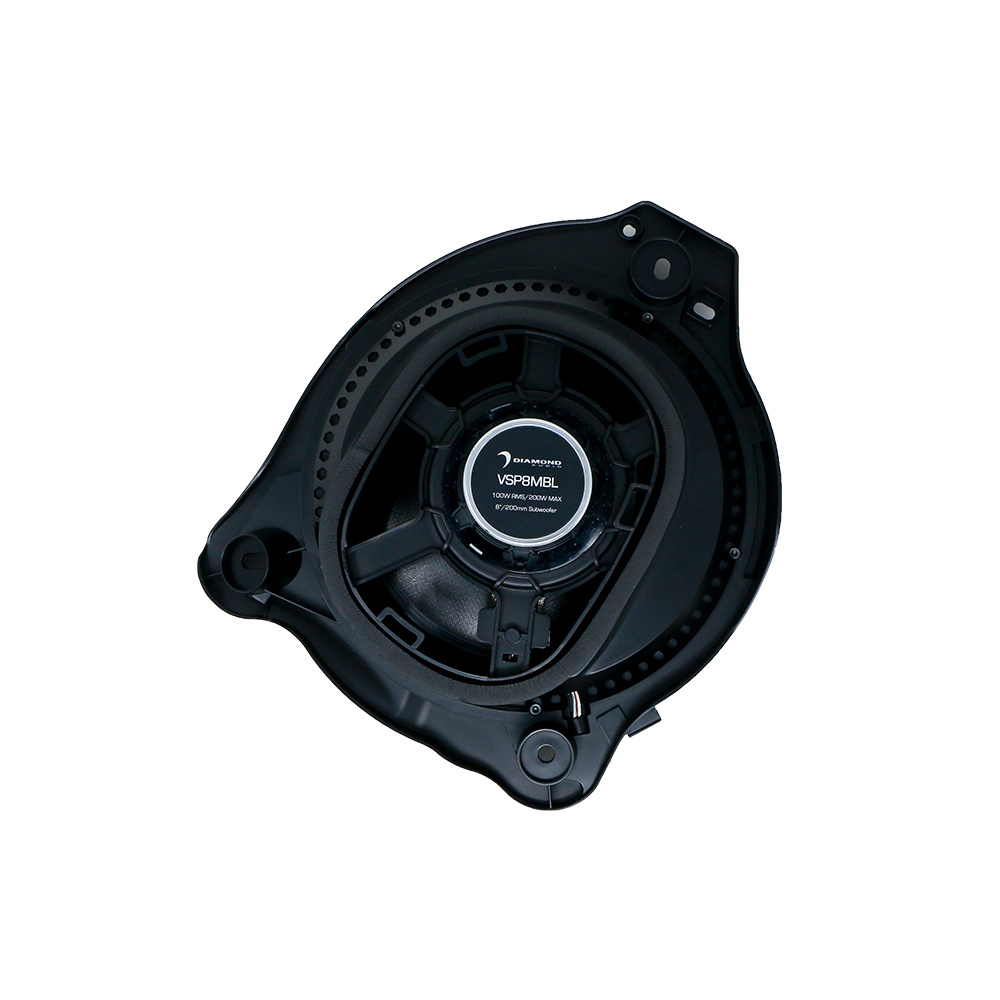

• VSP8MBL – High-Performance Factory Fit OEM Replacement 8″ Subwoofer Speaker (Left), 100W RMS / 200W MAX Power Handling
• VSP8MBR – High-Performance Factory Fit OEM Replacement 8″ Subwoofer Speaker (Right), 100W RMS / 200W MAX Power Handling
• VSP4CTRMB – High-Performance Factory Fit OEM Replacement 4″ Center Speaker, 40W RMS / 80W RMS Power Handling
• VSP4CXMB – High-Performance Factory Fit OEM Replacement 4″ Coaxial Speaker, 40W RMS / 80W RMS Power Handling
• VSP4CPMB –  High-Performance Factory Fit OEM Replacement 4″ Component Speaker, 40W RMS / 80W RMS Power Handling

• Specifications

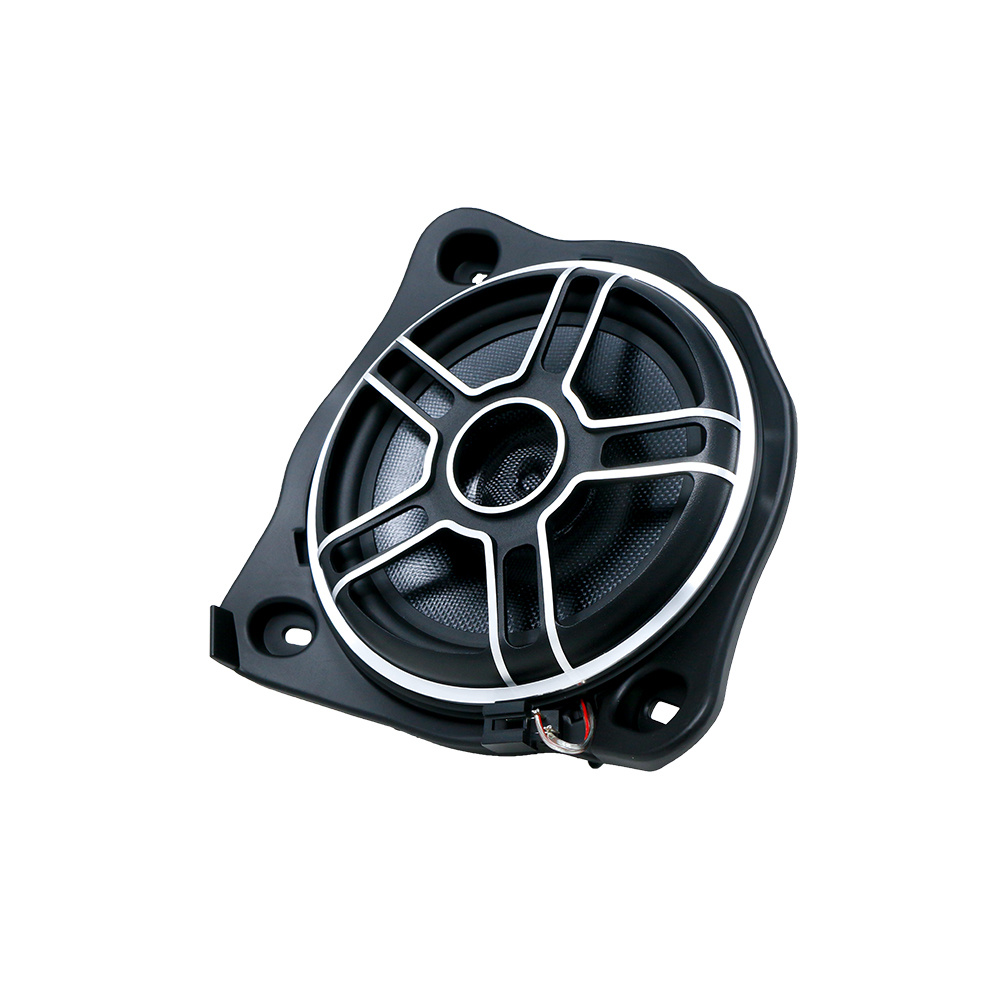

  VSP8SMBL/R

  • 8″ Underseat Subwoofer, North/South America, Pair
  • 75W RMS / 150 MAX
  • 2Ω/4Ω Impedance
  • Sensitivity: 90dB (1W/1M)
  • Frequency Response: 50-1500Hz
  • Cone Material Glass Fiber
  • Voice Coil: 38mm
  • Fo: 52Hz,  Qms: 4.51, Qes: 0.59
  • Qts: 0.52, Vas: 18.0L, Mms: 34g

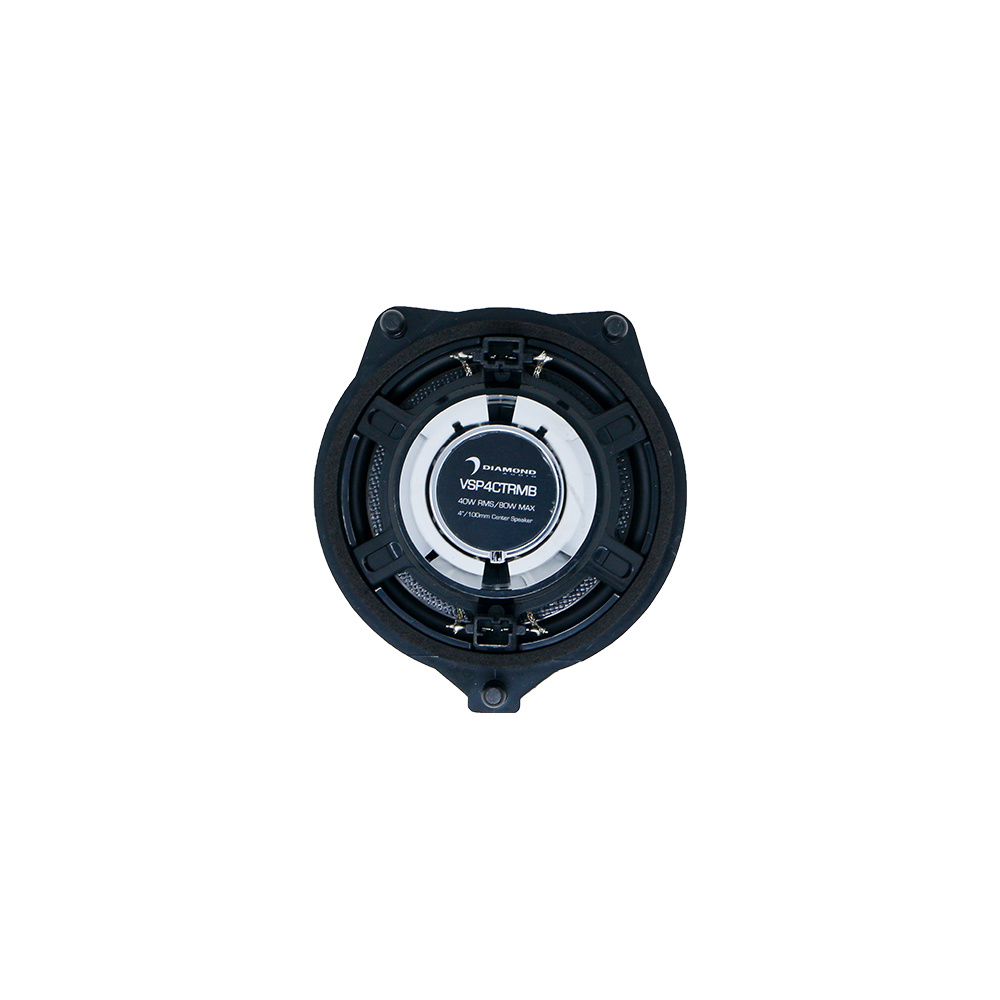

  VSP4CTRMB

  • 4” Center Dash Midrange
  • 75W RMS / 150 MAX
  • 4Ω Impedance
  • Sensitivity: 88dB(1W/1M)
  • Frequency response: 90-20KHz
  • Cone Material Glass fiber
  • Voice Coil 30mm
  • Fo 120Hz, Qms 5.63, Qes 0.82
  • Qts 0.72, Vas 1.52L Mms 5.1g

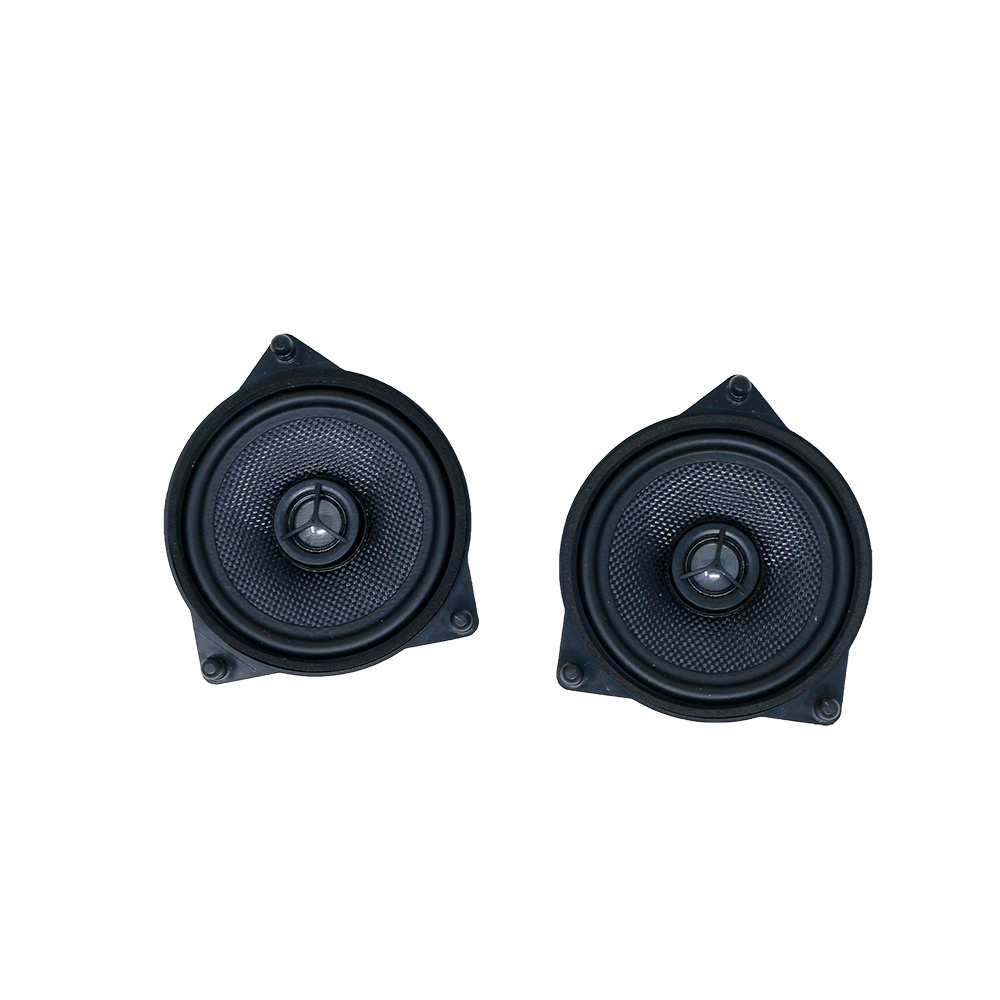

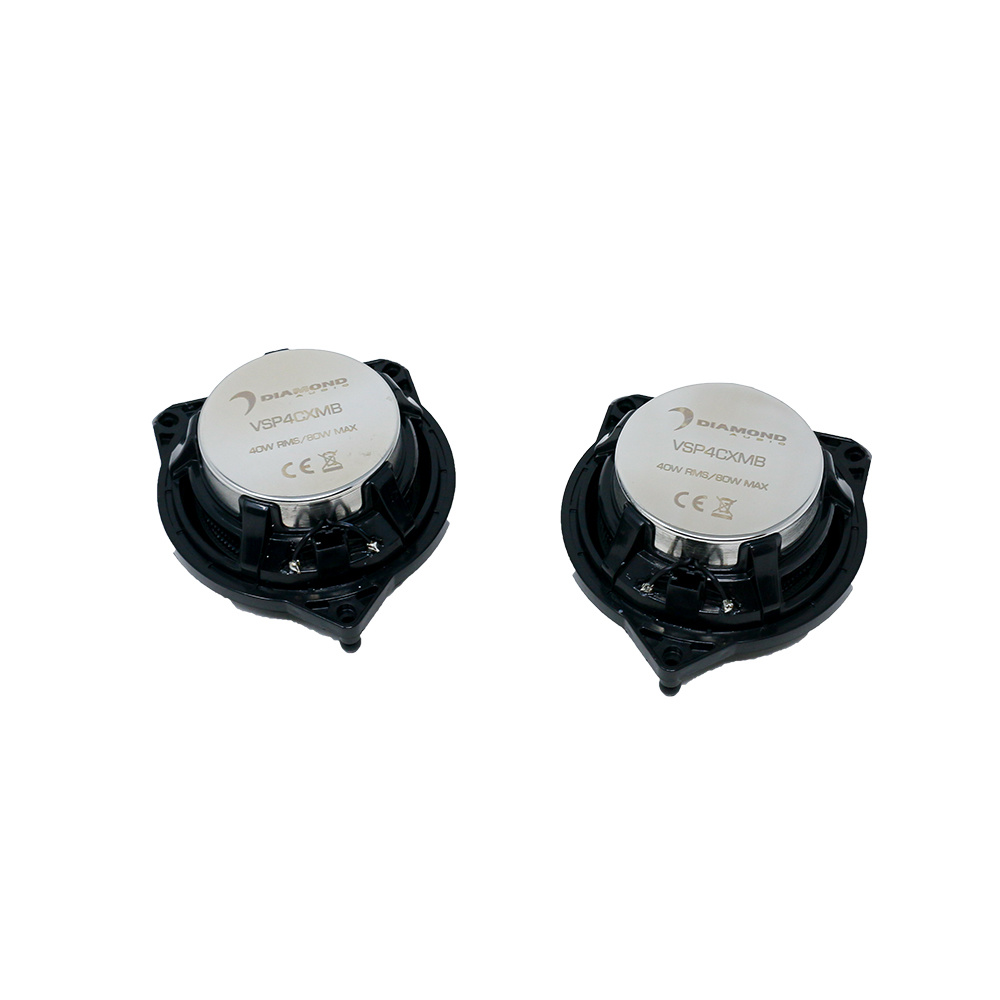

  VSP4CXMB

  • 4” Coaxial Speaker Set
  • 75W RMS / 150 MAX
  • 4Ω Impedance
  • Sensitivity: 89dB (1W/1M)
  • Frequency respons: 90-20KHz
  • Cone Material: Carbon fiber
  • Voice Coil: 50mm
  • Fo: 120Hz, Qms: 4.73, Qes: 0.68
  • Qts: 0.59, Vas:1.53L, Mms: 4.8g

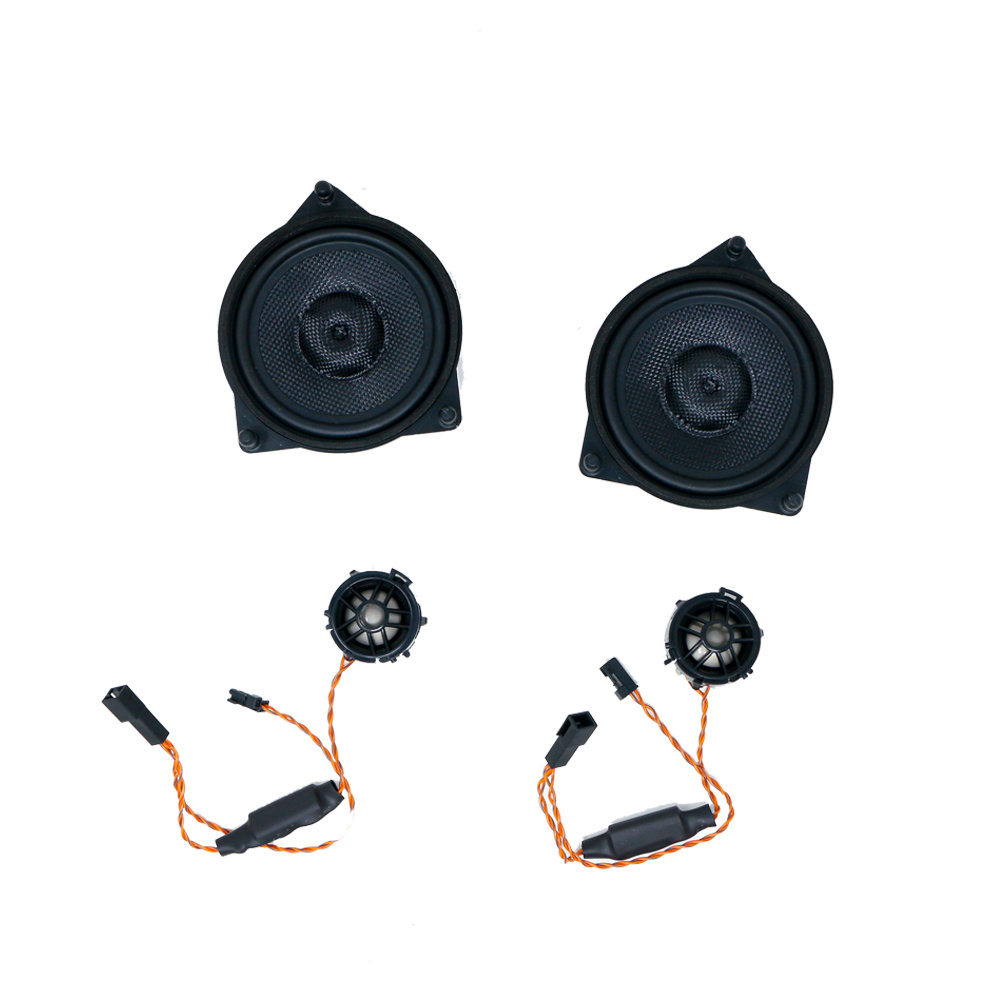

  VSP4CPMB

  Speaker

  • 4” Surround Midrange Speaker Set
  • 40W RMS / 80 MAX
  • 4Ω Impedance
  • Sensitivity: 88dB(1W/1M)
  • Frequency Response: 90-20KHz
  • Cone Material Glass Fiber
  • Voice Coil: 30mm
  • Fo 120Hz, Qms: 5.5, Qes 0.63
  • Qts: 0.5, Vas: 1.5L, Mms: 4.3g

  Tweeter

  • 1” Titanium Cone Silk Surround Blend Tweeter Set
  • 75W RMS / 150 MAX
  • 4Ω Impedance
  • Sensitivity: 91dB (1W/1M)
  • Frequency Response: 1500-25KHz
  • Cone Material: Titanium/Silk
  • Voice Coil: 25mm
  • Fo: 1500Hz
