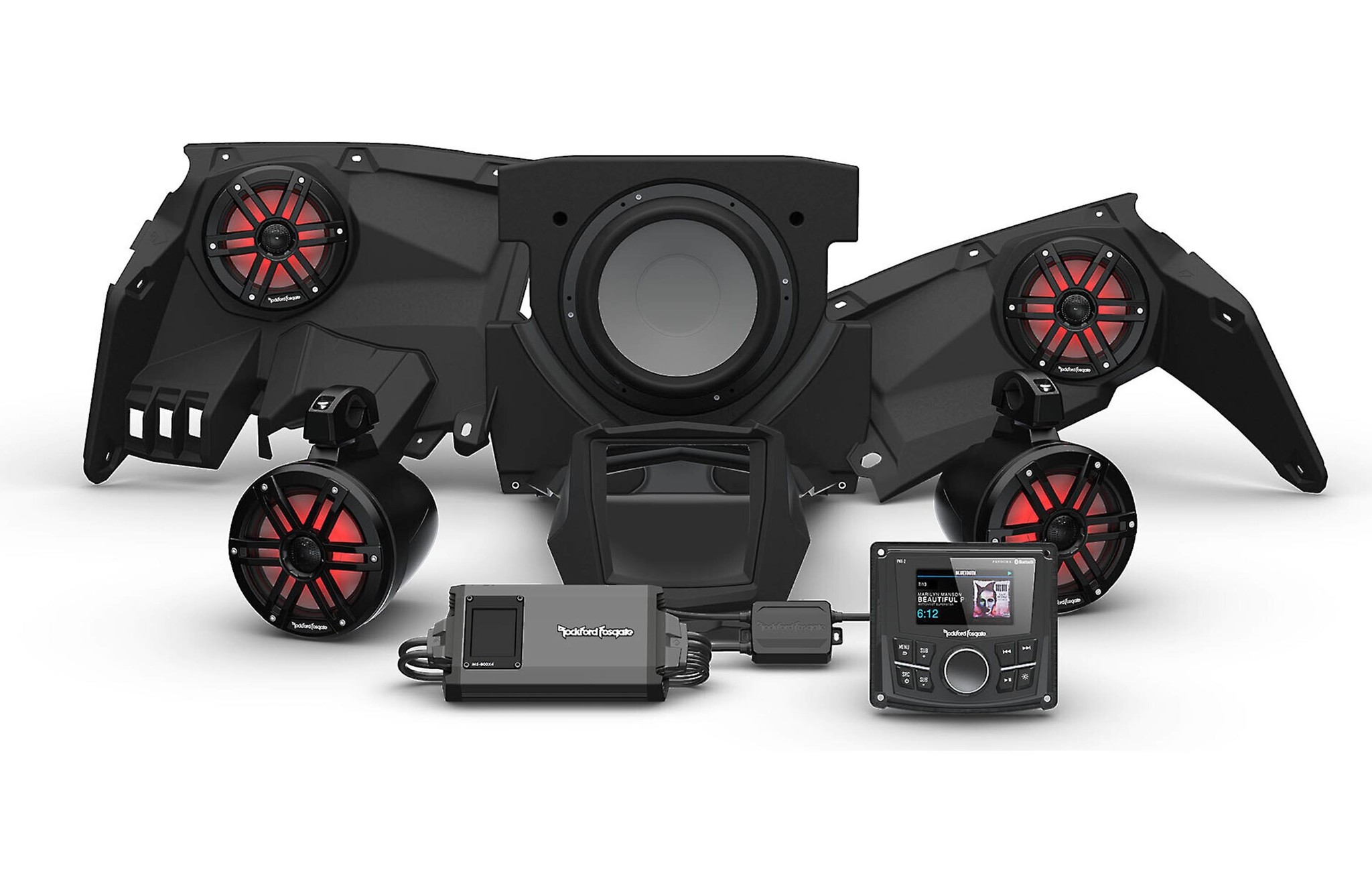

X317-STG4 RF CAN-AM 17-UP SET

Stage 4 audio upgrade kit for select 2017-up Can-Am Maverick X3s: includes receiver, four 6-1/2" speakers, 4-channel amp, and 10" subwoofer

Product highlights:

• sound system includes a digital media receiver, two sets of speakers, a 4-channel amp, and a 10" subwoofer
• also includes front and rear speaker pods, sub enclosure, wiring, amp kit and mounting plate

Rockford Fosgate PMX-2

• marine digital media receiver with AM/FM/WB tuner (does not play CDs)
• built-in amplifier (25 watts RMS/50 peak x 4 channels)
• works with Apple and Android smartphones
• USB port and aux input
• built-in Bluetooth for music streaming (will not make calls)
• warranty: 2 years

Rockford Fosgate M1-65B 6-1/2" 2-way front speakers

• Color Optix-compatible
• marine-rated speakers pre-loaded in custom-fit enclosures
• power handling up to 75 watts RMS (150 watts peak)
• salt-, fog-, and UV-resistant Santoprene rubber surround
• integrated 1" dome tweeter
• warranty: 2 years

Rockford Fosgate M1WL-65MB 6-1/2" roll bar speakers

• same great sound and features as the front speakers
• 360° rotational mounting capability for unlimited flexibility
• high density poly-ethylene enclosure with UV inhibitors
• warranty: 2 years

Rockford Fosgate M1D2-10B 10" marine subwoofer w/ enclosure

• power handling: 300 watts RMS (1200 watts peak)
• rugged, UV-stable injection-molded plastic construction
• dual 2-ohm voice coils
• durable Santoprene rubber surround
• warranty: 1 year

Rockford Fosgate M5-800X4 4-channel amp

• 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
• 200 watts RMS x 2 at 4 ohms in bridged mode
• variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
• front and rear tone controls (45 Hz, 12,500 Hz)
• warranty: 2 years

• Compatibility

  Vehicle Compatibility: The Rockford Fosgate X317-STG4 can be used with the following Can-Am Maverick vehicles:

  Make	Model	Year
  Can-Am	Maverick X3 Turbo	2017-2021
  	Maverick X3 Turbo R	2017-2021
  	Maverick X3 DS Turbo	2018-2021
  	Maverick X3 DS Turbo R	2018-2021
  	Maverick X3 X DS Turbo	2017-2020
  	Maverick X3 X DS Turbo RR	2018-2021
  	Maverick X3 RS Turbo R	2017-2021
  	Maverick X3 X RS Turbo	2017-2020
  	Maverick X3 X RS Turbo RR	2017-2021
  	Maverick X3 X MR Turbo²	2018-2021
  	Maverick X3 MR Turbo RR²	2018-2021
  	Maverick X3 X RC Turbo	2018-2021
  	Maverick X3 X RC Turbo RR¹	2018-2021
  	Maverick X3 MAX Turbo	2017-2020
  	Maverick X3 MAX Turbo R	2017-2020
  	Maverick X3 MAX DS Turbo	2018-2021
  	Maverick X3 MAX DS Turbo R	2017-2021
  	Maverick X3 MAX DS Turbo RR	2018-2021
  	Maverick X3 MAX RS Turbo R	2017-2021
  	Maverick X3 MAX X RS Turbo RR	2018-2021
  	Maverick X3 MAX X MR Turbo RR²	2018-2021

  ¹Front speakers require removal and reinstallation of Intrusion Bar.
  ²Snorkel obstruction (if applicable) prevents rear speakers from being mounted inside the roll-cage. If mounting on the outside, use caution as the speakers can be damaged by trees and other trail obstacles.
